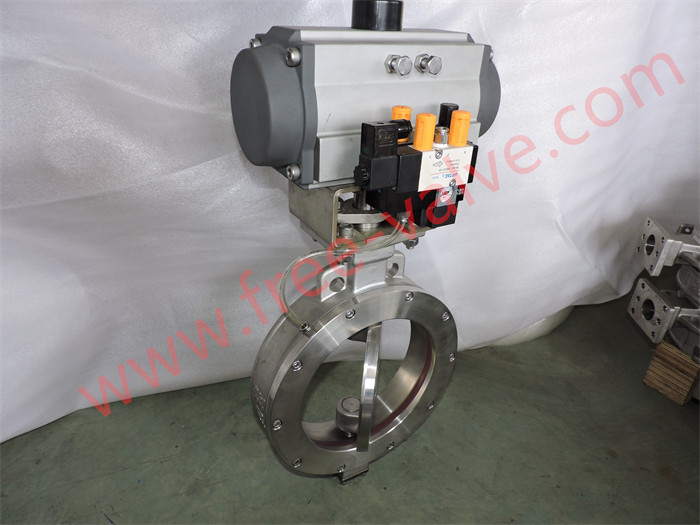

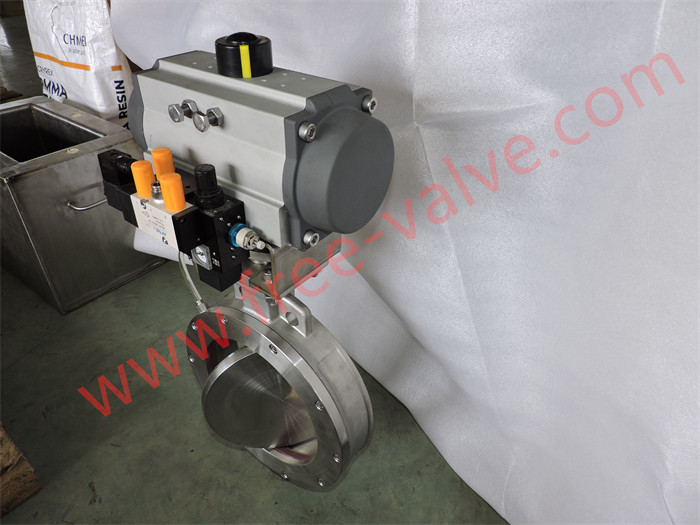

Wafer End Inflatable seat pneumatic butterfly valve for fly ash system
FREE-VALVE Wafer End Inflatable seat pneumatic butterfly valve is specifically designed for pneumatic conveying systems, serving as bulk material flow control valve for quick on-off operation of powder materials
FREE-VALVE Wafer End Inflatable seat pneumatic butterfly valve is specifically designed for pneumatic conveying systems, serving as bulk material flow control valve for quick on-off operation of powder materials. It features an advanced pneumatic-seal structure, with a wear-resistant and inflatable sealing ring made from specially formulated rubber. During opening/closing, there is no contact between the valve disc and the valve seat. With its unique functionality, the inflatable-seat butterfly valve effectively solves issues such as rapid wear and unreliable sealing in contact-sealing valves in pneumatic conveying systems.Inflatable seat butterfly valve is widely used in the powder material conveying processes of multiple industries, including:Power industry ,Metallurgical industry,Chemical industry,Food,Pharmaceutical industry ,etc.
Features
- The valve rotates into the closingposition, the disc makes only casual contact with the inflatable seat, reducing friction and torque requirements.The seat inflates against the disc providing more sealing surface and an even pressure distribution against the disc after the valve is closed.
- The seat is first deflatedwhen the valve is about to open. The disc is then free to rotate to the open position without rubbing against the seat.
- The inflation pushes the inflatableseat tightly against the disc, creating a tight seal, which achieves zero leakage.This designing makes the inflatable seat butterfly valve distinct from traditional butterfly valves.
- The disc does not rub against the seat during operation, reducing thewear and tear on the disc and the seat, prolonging the valve’s service life.
- Suitable for handling both liquids ,dry bulk materialsand slurry applications.
Technical specifications
1) Size Range：DN50～DN1000.
2) Pressure Range:Class 150,PN10 ～PN16.
3)Body material:Stainless steel
4) Sealing material:Fluorine rubber,EPDM
5) Connection method：Wafer
6) Operating method：pneumatic .
7) Pressure test:GB/T13927; API598.
8) Face to Face: GB/T12221; API609.
9) Model:FRD672F

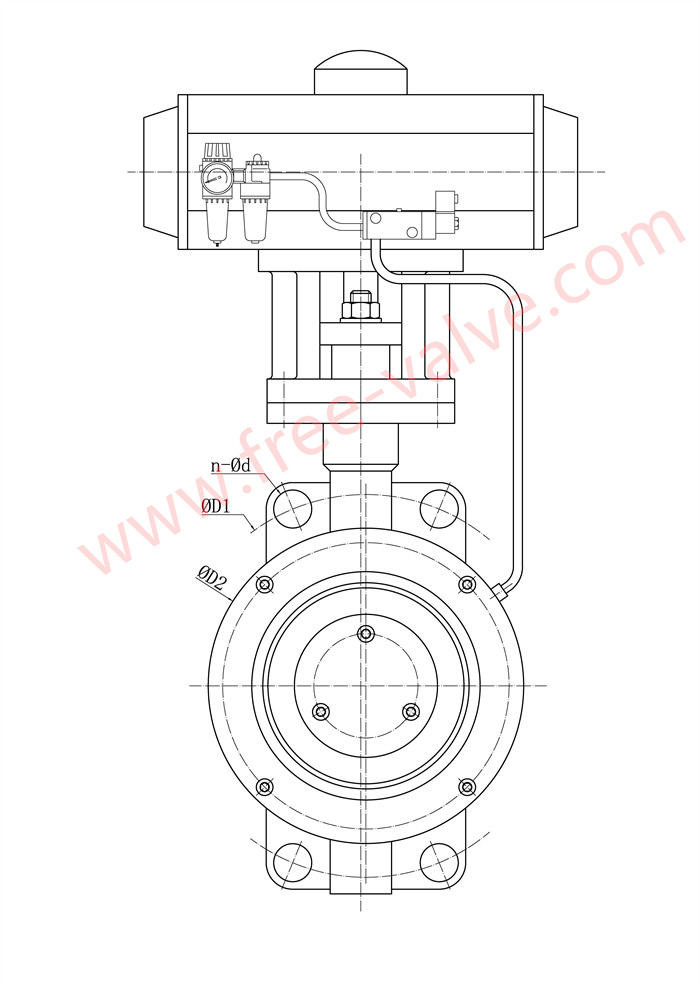

| DN | PN | L1 | D1 | D2 | n-∅d |
| DN200 | PN10 | 71 | 295 | 265 | 8-∅22 |
| DN250 | PN10 | 76 | 350 | 320 | 12-∅22 |
| DN300 | PN10 | 83 | 400 | 375 | 12-∅22 |
Applicable ：
FREE-VALVE Wafer End Inflatable seat pneumatic butterfly valves are designed for the most severe conditions and providing outstanding performance even in harsh environments.The inflatable seat design provides excellent sealing performance and reduces wear and tear on the valve components, ensuring long service life and low maintenance costs. Its are widely used in many industries, such as food processing, pharmaceuticals, fly ash system,bulk material pneumatic conveying and mining, where they help maintain hygiene standards, prevent contamination, and make cleaning and maintenance easier.
