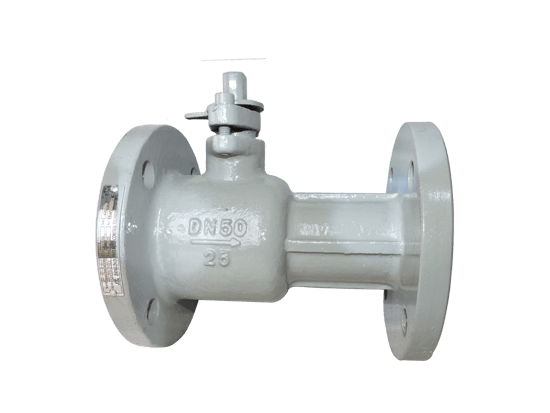

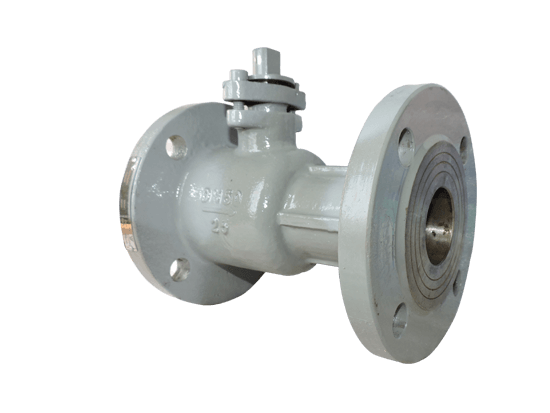

Integral Type Floating Ball Valve
Size Range
DN25-DN350
Pressure Range
PN6~PN25
Structure Type
1 pcs type
Body material
WCB,stainless steel
Seat material
RPP,PTFE
Connection Type
Flange
Operation methode
lever operate
Design standard
GB/T 12237
Testing standard
GB/T 13927
Face to face
GB/T 12221
Applicable Temperature
-20~350℃
Share with:
Download
Introduction

FREE-VALVE’s integral type floating ball valve is a kind of common ball valve in the industry. It is used to drain sewage from line if needed.New sealing materials for the seat is designed with long service life. Sewage drain ball valve is widely used in petroleum, chemical, rubber, paper making, pharmaceutical and other industries.

Advantage
1. The ball valve can quickly drain sewage.
2. Easy to install and operation .
3. Ball and sealing ring are machined by special process ,which make the ball valve have longer service life .
4. Face to face dimension is the same as globe valve ,plug valve and blow down valve ,make the valve replacement is easy on working site .
5. One PCS body type ,avoid any outside leakage on site .



Applications
FREE-VALVE’s integral type floating ball valve is installed at petroleum, chemical, rubber, paper making, pharmaceutical and other industries.
