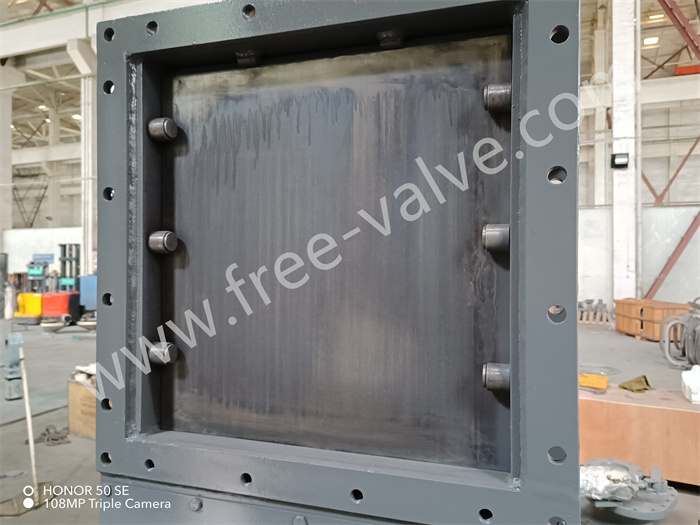

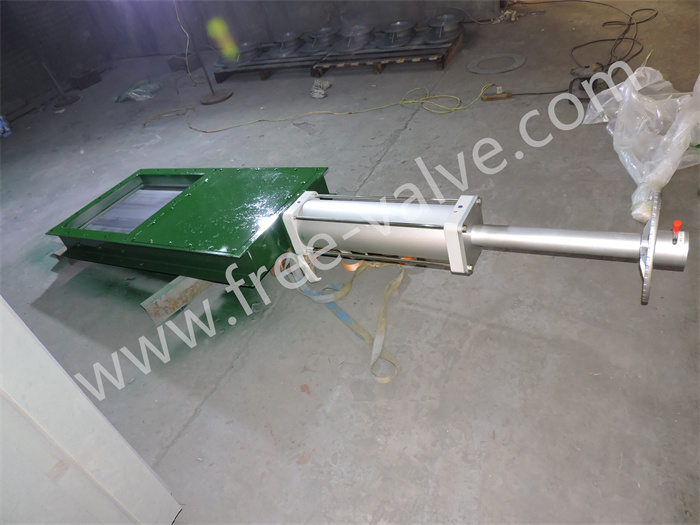

Square port knife gate valve for Bulk handling

Ceramic lined rotary disc gate valve is being machining at work shop by grinding machine

FREE-VALVE’s  Split body WCB Body Aluminum oxide Y type slurry valve  is ideal for many applications because the valves are designed for use on abrasion materials.  Split body WCB Body Aluminum oxide Y type slurry valve is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replace the valve seat.The valve with abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance.

Pneuamtic dome valve opening and closing test

FREE-VALVE’s Manual operation Split body Y Type Slurry Valve is ideal for many applications because the valves are designed for use on abrasion materials. Manual operation Split body Y Type Slurry Valve is divided into left and right parts with a seat between them.

FREE-VALVE brand Pneumatic operated dome valves are designed for ash handling system.Dome valve is unique in its ability to open and close with a tight pressure seal in environment where abrasive material are passing.Dome valve can achieve operating reliability in severe applications .

Adjustment for Pneuamtic Ceramic Lined V Type Control Ball Valve

The pneumatic ceramic lined double disc gate valve testing and activating with limit Switches and solenoid valves.

FREE-VALVE’s  Split body Ceramic seat ceramic disc Y type electric control slurry globe valve is ideal for many applications because the valves are designed for use on abrasion materials.  Split body Ceramic seat ceramic disc Y type electric control slurry globe valve is divided into left and right parts with a seat between them.

Shell test for the manual ceramic lined ball valve ,test medium is water ，duration time is made according to the DIN standard .The shell performance of the ceramic lined segment control ball valve is accepted .

FREE-VALVE’s Manual Wafer type Ceramic Butterfly Valves were operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves.

FREE-VALVE brand Pneumatic Ceramic Lined Knife Gate Valves are known as slurry gate valves. Its have simple structure and can cut off medium which contains solid particles and fibers, but for some very hard particles or serious erosive mediums, general metal seated knife gate valves will be washed out easily, so ceramic knife gate valves are very suitable for those mediums containing fibers and hard solid particles.

FREE-VALVE’s Pneumatic Ceramic Rotary Gate Valves are designed for pressurized and vacuum systems including pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The whole of ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve.

The video shows the sealing surface of ceramic lined disc

FREE-VALVE brand Pneumatic Ceramic Lined Rotary Double Disc Gate Valves are designed for pressurized and vacuum systems including dense and dilute phase pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The double ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve,the valve is used to replace the dome valve in the pipe line of the ash system.

Pneumatic ceramic lined rotating disc gate valve will be installed at ash handling system in thermal power plant

Pneumatic hard alloy double disc rotary gate valve is designed for higher temperature in the fly ash system at coal power plant

Stainless steel ceramic lined butterfly valve is designed for any abrasive and corrosive working conditions ,to replace any metal seated butterfly valve with longer working life .

FREE-VALVE brand wear resistant ceramic lined butterfly valves with stainless steel valve body  are operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control . The ceramic materials are applied to the most common problem areas within disc of butterfly valve.These ceramic materials are 6-8 times harder than stainless steels and this ensures that the ceramic butterfly valve can operate under harsh, abrasive service environment.

3 inch class 150 Pneumatic ceramic lined double plate gate valve opening test

FREE-VALVE pneumatic stainless steel ceramic lined butterfly valves are operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves. The ceramic materials are applied to the most common problem areas within disc of butterfly valve.These ceramic materials are 6-8 times harder than stainless steels and this ensures that the ceramic butterfly valve can operate under harsh, abrasive service environment.

FREE VALVE Brand many sets pneumatic ceramic lined double disc gate valve will be deliveried to oversea market

The video show the opening and closing for pneumatic ceramic rotary gate valve, Ceramic lined sealing makes the valve having anti abrasive performance,So it suits for wherever opening and closing frequently .

FREE-VALVE brand swing arc valves are designed for ash handling system.They use a spherical-shape dome and an inflatable-seal to ensure a 100% airtight seal.swing arc valve is unique in its ability to open and close with a tight pressure seal in environment where abrasive material are passing.Dome valve can achieve operating reliability in severe applications .

2 PCS valve body and ceramic valve trim ,makes the FREE-VALVE brand ceramic lined ball valve installed on abrasive and corrosive medium.

FREE-VALVE Pneumatic flanged Segmented ball valves are quarter-turn trunnion-mounted control valve mainly recommended for control the flow of fluid in the pipeline system.Segmented ball inside the valve is not a complete sphere,but rather a contoured v-notch segment in the ball.

FREE-VALVE customized pneumatic rotary disc gate valves are designed for pressurized and vacuum systems including pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The rotating disc slides across the valve body during operation, clearing out process material and cleaning the precision-lapped surface. The whole of sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve.

FREE-VALVE Wafer End Inflatable seat pneumatic butterfly valve includes an inflatable seat ,the seat is typically a resilient liner that can be inflated or deflated,as opposed to traditional butterfly valves that rely on friction for sealing.Inflatable seats have a creative design that blends the traditional butterfly valve features with the special attribute of an inflatable seat. When the seat is inflated

Open and close test for pneumatic ceramic lined double disc gate valve

FREE-VALVE Pneumatic operated resilient sealed inflatable seated butterfly valve includes an inflatable seat ,the seat is typically a resilient liner that can be inflated or deflated,as opposed to traditional butterfly valves that rely on friction for sealing.Inflatable seats have a creative design that blends the traditional butterfly valve features with the special attribute of an inflatable seat.

Double acting pneumatic knife gate valves are suit for any abrasive medium and operated by double acting pneumatic .
