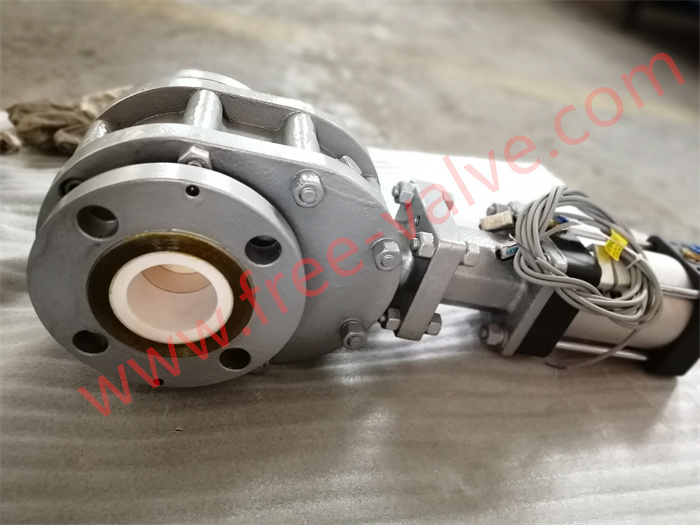

Parallel Slide Double Disc Gate Valves for Cement Factory
FREE-VALVE Parallel Slide Double Disc Gate Valves features parallel double disc symmetrically positioned on either side of the valve body.The valve body is equipped with two wear-resistant alloy or toughening ceramic valve discs and seats.
FREE-VALVE Parallel Slide Double Disc Gate Valves features parallel double disc symmetrically positioned on either side of the valve body.The valve body is equipped with two wear-resistant alloy or toughening ceramic valve discs and seats.The two discs come together tightly in the middle of the valve body for providing a reliable seal performance and reducing maintenance time and improving operational uptime. The valve is designed to handle the most abrasive media for on-off service in pneumatic conveying lines.
Features:

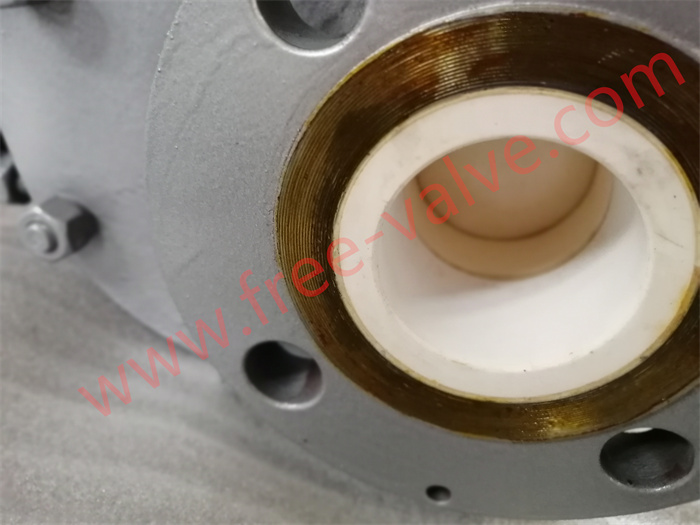

- Two-sideSealing pair is made of structural ceramic or wear-resistant alloy，which have perfect performance to resist wear and flushing.
- It inserts spring between double valve discs to ensure self- sealing through bi-directional flexible preload pressure of spring, having characteristics of low pressure bi-directional sealing and without dust clogging phenomenon in the process of the opening and closing of valve.
- The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.
- Self-lapping, self-cleaningdisc rotational motion for long-life sealing performance and avoiding the ash deposition in abrasive service.Disc can be replaced.
- The disc shearing action clears the sealing surfaces and its path of particulate, creating an ever-tighter seal with exceptionally low leak rates and the assurance of a tight shut-off.
- The double disc valve is a component designed to replace dome valveas discharge valve.
- Easy maintenance minimizes downtime, replaceable parts.
Technical Parameters
1) Size Range: NPS2~NPS12,DN50~DN300
2) Pressure Range: Class 150 /PN10/PN16
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange
5) Sealing material: engineering ceramics/tungsten carbide
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Flange standards:ASME B16.5，GB/T9113
Operating Type: Pneumatic,manual
| 1 | Size Range | NPS2~NPS12,DN50~DN300 |
| 2 | Nominal pressure | Class 150 /PN10/PN16 |
| 3 | Applicable Temperature | 0~200℃ |
| 4 | Connection Type | Flange |
| 5 | Disc | Carbon steel+ceramic,stainless steel+ceramic |
| 6 | Seat | ceramic |
| 7 | Pressure test | Pressure test |
| 8 | Face to Face | GB/T12221, ASME B16.10 |
| 9 | Flange standards | ASME B16.5，GB/T9113 |
| 10 | Operating Type | Pneumatic |
Main outline and connection dimensions
| DN | PN | L | D | D1 | D2 | n-∅d |
| DN50 | PN10 | 240 | 160 | 125 | 99 | 4-∅18 |
| DN65 | PN10 | 260 | 180 | 145 | 118 | 4-∅18 |
| DN80 | PN10 | 260 | 200 | 160 | 132 | 8-∅18 |
| DN100 | PN10 | 280 | 220 | 180 | 156 | 8-∅18 |
| DN125 | PN10 | 300 | 250 | 210 | 186 | 8-∅18 |
| DN150 | PN10 | 300 | 285 | 240 | 210 | 8-∅22 |
| DN200 | PN10 | 310 | 340 | 295 | 266 | 8-∅22 |
| DN250 | PN10 | 365 | 395 | 350 | 320 | 12-∅22 |
| DN300 | PN10 | 400 | 440 | 400 | 370 | 12-∅22 |
Note:Face to Face dimension “L” can be customized according to customer requirements
Applications
FREE-VALVE Parallel Slide Double Disc Gate Valves are designed to handle dry bulk solid materials in pneumatic conveying systems. The disc and seats are solid hardened alloys or ceramic which provides exceptionally long life in abrasive media. Our valve has characteristics of good sealing performance, high temperature resistance, strong abrasion resistant, open and close easily and no ash block.So our valves are widely used as shut-off valve in pneumatic conveying system. Pneumatic Parallel Slide Double Disc Gate Valves are flow control equipment used in cement industry dry powder, power plant fly ash and other media, especially in environments where high sealing performance and long-term use are required.
1.What type of ceramic valves can you buy from our company?
1. ceramic knife gate valve
2. ceramic rotary disc gate valve
3. ceramic ball valve
4. ceramic butterfly valve
5. ceramic double disc gate valve
6. ceramic rotating disc diverter valve
7. tungsten carbide rotary disc gate valve
5. tungsten carbide double disc gate valve
6. tungsten carbide rotating disc diverter valve
2. why should you buy from us not from other suppliers?
We have its own independent research and development team, and independently develop and produce reliable valves for dry bulk material in pneumatic conveying control system.Our talented design and engineering teams work hand-in-hand with our customers to extensively evaluate your unique operational needs and challenges, then design in customized features that enable our abrasion resistant ceramic valves to support your specific applications and solve your plant’s toughest problems on site.
