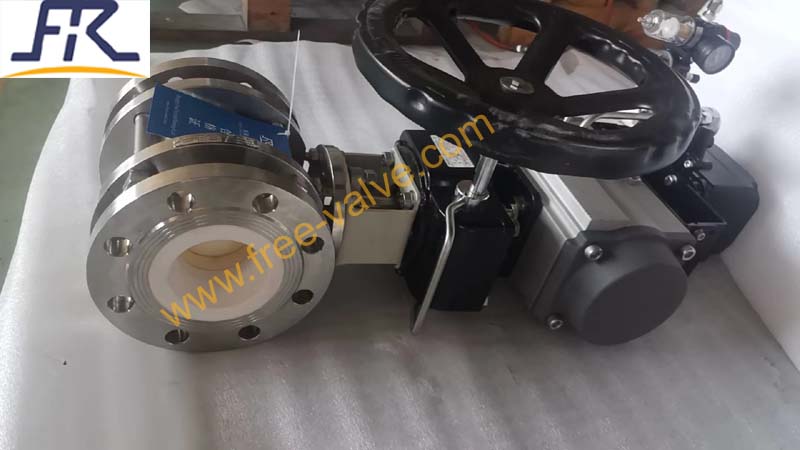

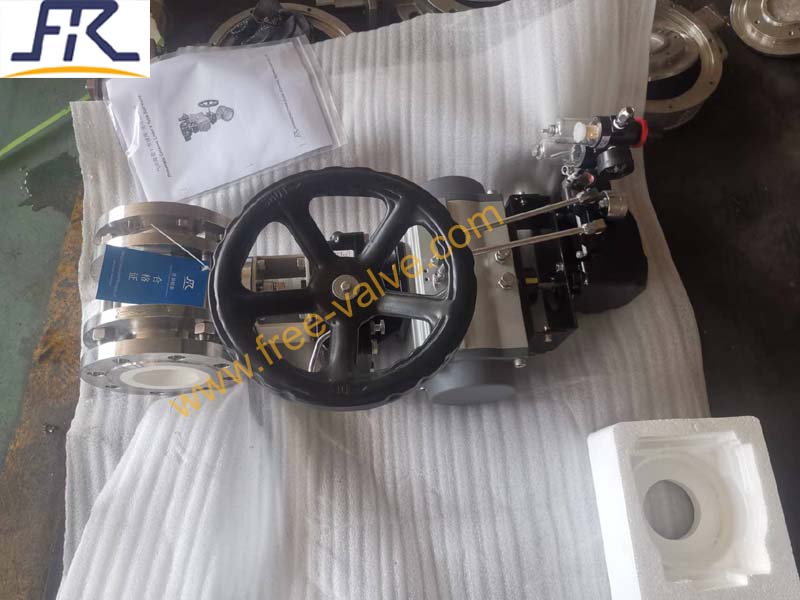

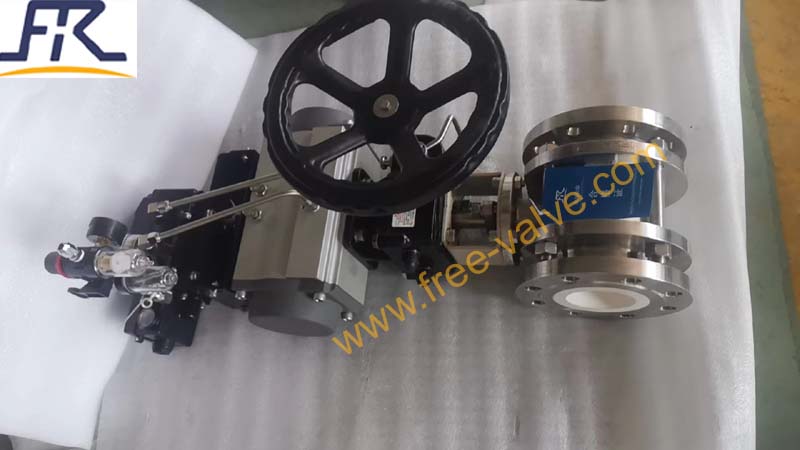

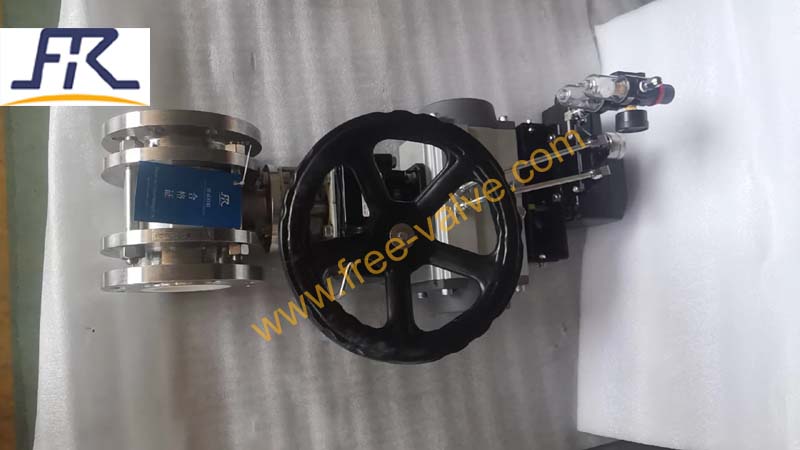

Ceramic V-Notch Segment Ball Valves For Abrasive Slurry
FREE-VALVE brand V port anti-abrasive &anti-corrosive segment ball valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as control function in corrosive medium with abrasive solids ,more over ,stainless steel valve body makes the ceramic lined ball valve suitable for corrosive medium.
FREE-VALVE brand ceramic lined segment ball valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids .
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Customized actuation types are installed on the ceramic ball valve, positioner type can be customized
4.Stainless steel valve body makes the ceramic lined ball valve suitable for corrosive medium.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
6.The valve body is in the form of 3-PCS.
7.V Port design for control type
Technical Specification
Nominal Pressure:PN10 ,Class150
Size Range :DN10~DN 200
Connection type:Flange end
Working Temperature ≤200℃
Operating Type:Pneumatic
Sealing surface material:Engineering ceramic
Ball material:Engineer ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
Application
FREE-VALVE brand control type anti-abrasive &anti-corrosive ball valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment,Glue industry and food industry.
