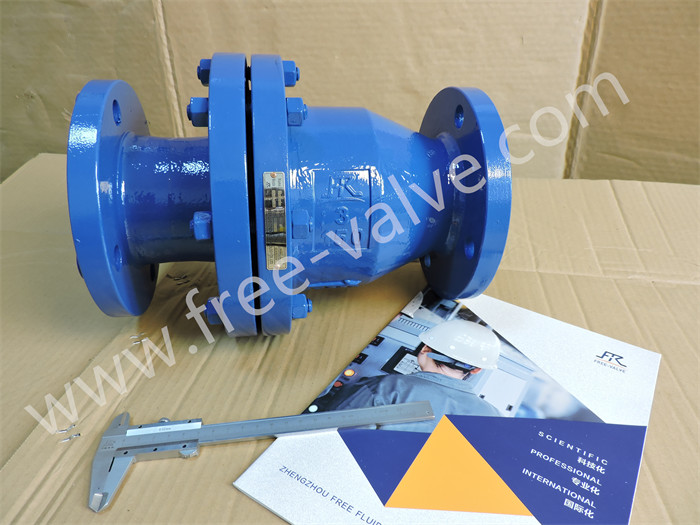

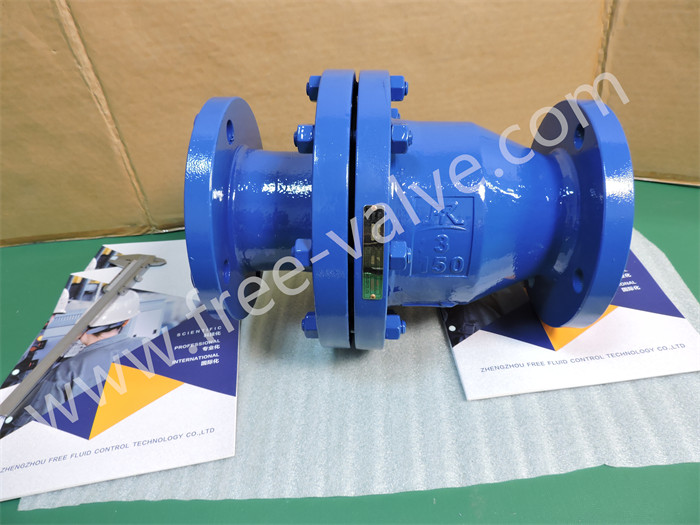

FRH44J,FRH44F4,FRH44F46 Rubber lined plate swing check valve

FREE-VALVE rubber lined plate swing check valve has low flow resistance, low pressure drop, is easy to open, has a simple structure, and strong adaptability (such as pressure fluctuations and media contamination), thus it is widely used in industries such as petroleum, chemical, water supply, and food.

FRH44J,FRH44F46,FRH44PFA Rubber Lined Swing Disc Check Valve

Content

FREE-VALVE rubber lined plate swing check valve has low flow resistance, low pressure drop, is easy to open, has a simple structure, and strong adaptability (such as pressure fluctuations and media contamination), thus it is widely used in industries such as petroleum, chemical, water supply, and food.The working principle of the Rubber plate swing check valve is that the medium enters from the inlet end, and the medium pressure generates an opening torque on the rocker shaft, overcoming the rocker’s gravitational torque to open the valve disc, allowing the medium to pass through. Once the medium flows back, the two torques act in the same direction on the rocker, causing it to close and prevent backflow. At this time, the medium pressure fully acts on the rocker, converting the pressure into sealing force.

Features

The disc is designed as a wholewith special
Easy to install,the valvecan be used for vertical installation.
The channel is in a flow line shapein the valve, and the flow resistance is smaller than that of the lift check valve.
The lining material is optional, which can be applied to a variety of media ,the valve has good corrosion resistance.

Technical Specification:

Size Range: DN32~DN500
Applicable Temperature:-20~120℃
Connection Type: Flange
Lined material：NBR,EPDM,F46,PFA
Test standard：GB/T13927,API598
Flange To Flange:ANSI10,GB/T12221
Model:FRH44J,FRH44F46

Service Temperature and suitable media of body lining material

Lining material	Service temperature,°C	Application medium
NR	-10°C～+85°C	exclusive of strong oxidants:fluorosilicic acid, phenolic acid, 30 percent sulfuric acid, 80 percent phosphoric acid, alkali, salt, gold plating solution, sodium hydroxide, potassium hydroxide, neutral salt aqueous solution, 10 percent sodium hypochlorite, ammonia, most alcohols, organic acids and aldehydes,ect
EPDM	≤120°C	It has the similar acid and alkaline properties of natural glue, and it is very good for low pressure steam, hot water and cold water.
PTFE(F4)	≤180°C	Strong acid, strong base, strong oxidant, organic solvent, etc
FEP(F46)	≤120°C	Any organic solvents or reagents, xi or concentrated inorganic acids, bases, ketones, aromatics, chlorinated hydrocarbons, etc
PFA	≤180°C	Strong acid,strong alkali,Strong oxidant, organic solvent, etc

Main outline and connection dimensions

DN	PN	L	D	D1	D2	n-∅d	Working Pressure
20	PN10	160	105	75	55	4-∅14	1.0MPa
25	PN10	160	115	85	65	4-∅14
32	PN10	180	140	100	78	4-∅18
40	PN10	200	150	110	85	4-∅18
50	PN10	230	165	125	100	4-∅18
65	PN10	290	185	145	120	4-∅18
80	PN10	310	200	160	140	8-∅18
100	PN10	350	220	180	155	8-∅18
125	PN10	400	250	210	185	8-∅18
150	PN10	480	285	240	210	8-∅22
200	PN10	500	340	295	265	8-∅22
250	PN10	550	395	350	320	12-∅22	0.6MPa
300	PN10	698	445	400	370	12-∅22	0.4MPa
350	PN10	787	505	460	420	16-∅22
400	PN10	914	565	515	475	16-∅26
450	PN10	978	615	565	532	20-∅26
500	PN10	978	670	620	585	20-∅26

Note: Our company also produces other pressure grade products, flange connection size according to customer requirements according to AS4087,GB/T9113 or ASME B16.5.

Application:

FREE-VALVE rubber-lined swing check valve is a commonly used valve in pipeline systems that prevents backflow of the medium and relies on the medium’s own force to automatically open and close the valve disc.FRH44J Rubber Lined plate Swing Check Valves are mainly used in water supply systems, petroleum, chemical and other industrial sector for anti-corrosive performance.
