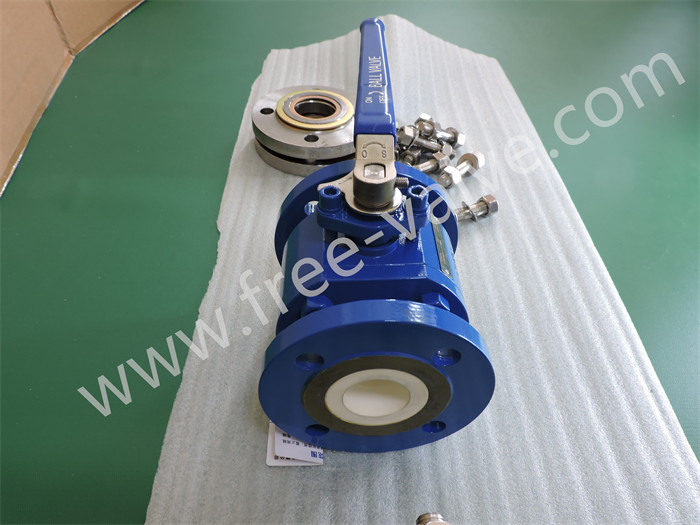

Manual Flange End 2 Piece Ceramic Lined Composite Ball Valves
FREE-VALVE Two piece Flange End Ceramic Lined Floating Ball Valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance.The body of a two-piece ball valve is composed of a main body and a secondary body.
FREE-VALVE Two piece Flange End Ceramic Lined Floating Ball Valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance.The body of a two-piece ball valve is composed of a main body and a secondary body. After the ball , seat, and stem are installed in the main body, the secondary body is connected to the main body through nuts or bolts. The ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids content.
Features:
- The 2pc ball valve consists of two separate pieces that can be easily taken apart for maintenance or repairs.
- The hardness of the ceramic material can be higher than HRC80.
- Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
- Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic, electric and hydraulic actuators.
- Customized V type ceramic control valve is also available.
- The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
Technical Specification
Nominal Pressure PN10/PN16/Class150
Size Range :DN50~DN150, NPS2 ~NPS6
Connection type Flange
Working Temperature ≤200℃
Operating Type:Manual, Pneumatic and Electric
Seat:Engineering ceramic
Ball material:Zirconia ceramic
Flange Standards ASME B16.5,GB/T9113，Gost33259
Main outline and connection dimensions
| DN | d | PN | L1 | L2 | D | D1 | D2 | n-M/n-∅Z | |
| DN25 | 20 |
PN10
|
127 | 140 | 115 | 85 | 68 | 4-M12/4-∅14 | |
| DN32 | 25 | 140 | 165 | 140 | 100 | 78 | 4-M16/4-∅18 | ||
| DN40 | 32 | 165 | 165 | 150 | 110 | 88 | 4-M16/4-∅18 | ||
| DN50 | 40 | 178 | 203 | 160 | 125 | 99 | 4-M16/4-∅18 | ||
| DN65 | 50 | 190 | 222 | 180 | 145 | 118 | 4-M16/4-∅18 | ||
| DN80 | 65 | 203 | 241 | 200 | 160 | 132 | 8-M16/8-∅18 | ||
| DN100 | 80 | 229 | 305 | 220 | 180 | 156 | 8-M16/8-∅18 | ||
| DN125 | 100 | 356 | 250 | 210 | 186 | 8-M16/8-∅18 | |||
| DN150 | 125 | 394 | 285 | 240 | 210 | 8-M20/8-∅22 | |||
Note: Our company also produces other pressure grade products, flange connection size according to customer requirements according to GB/T9113 ,ASME B16.5,Gost33259 or JIS B2220.
Application
FREE-VALVE Two piece Flange End Ceramic Lined Floating Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment.
