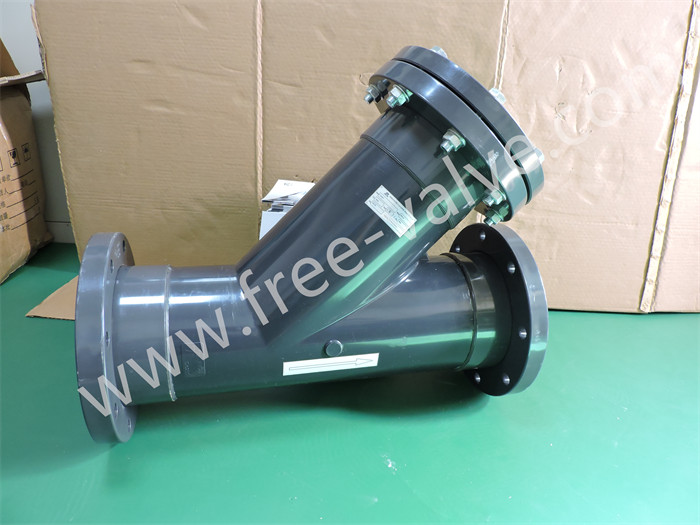

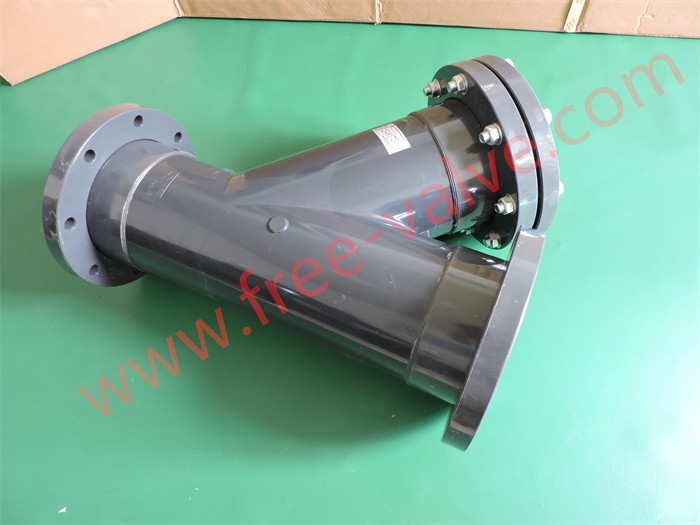

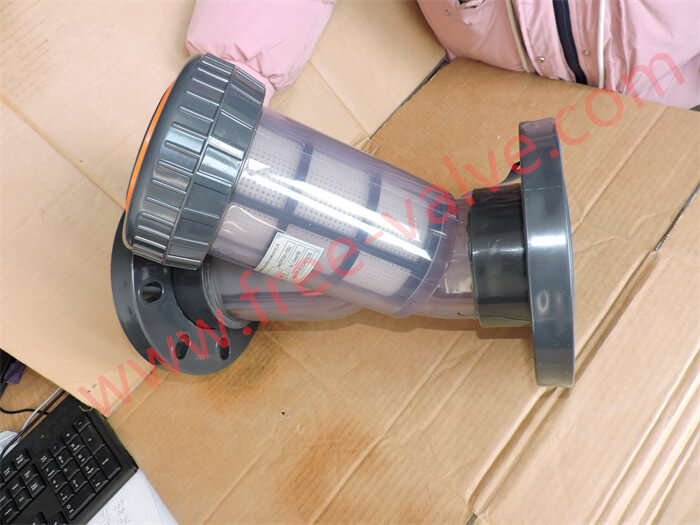

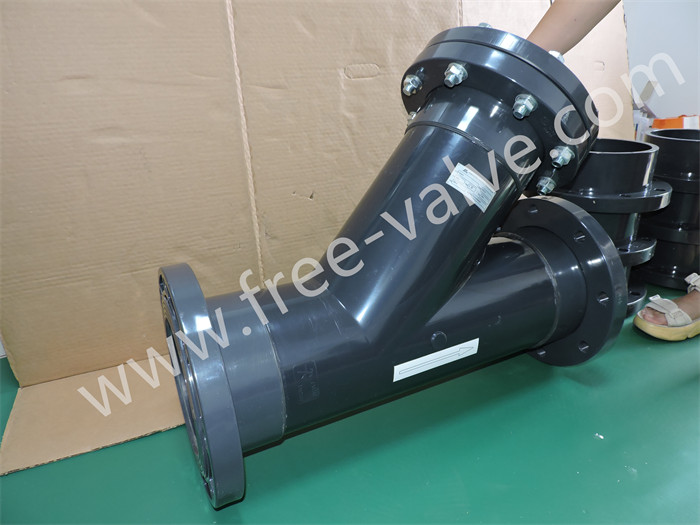

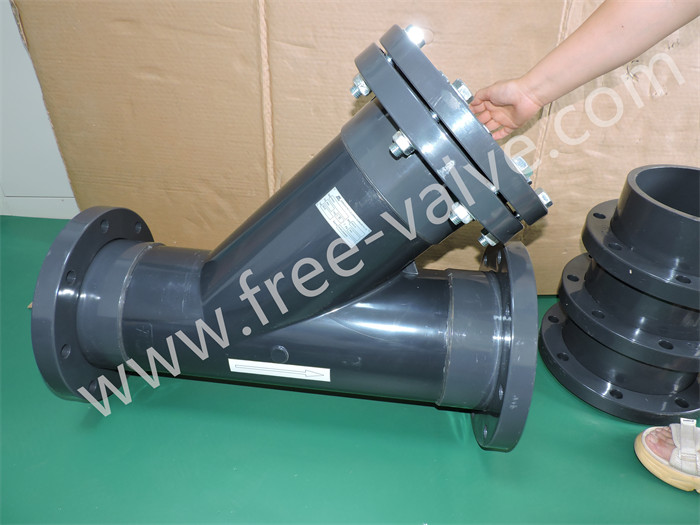

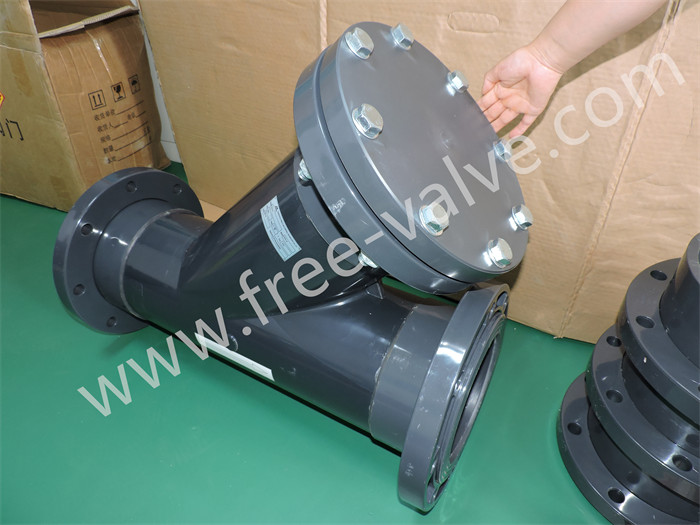

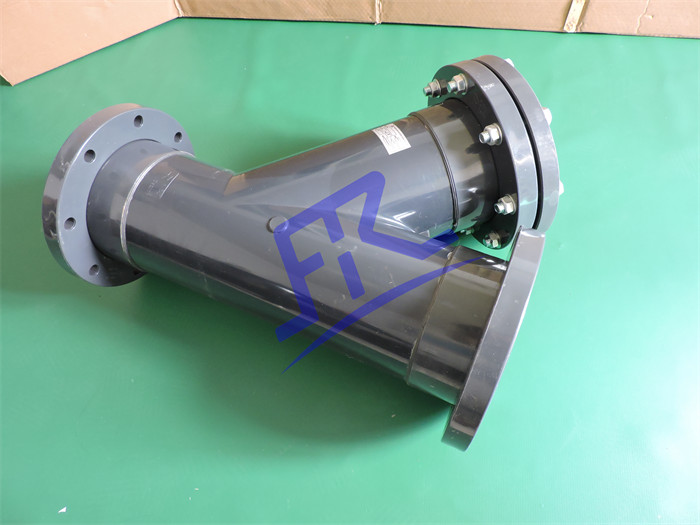

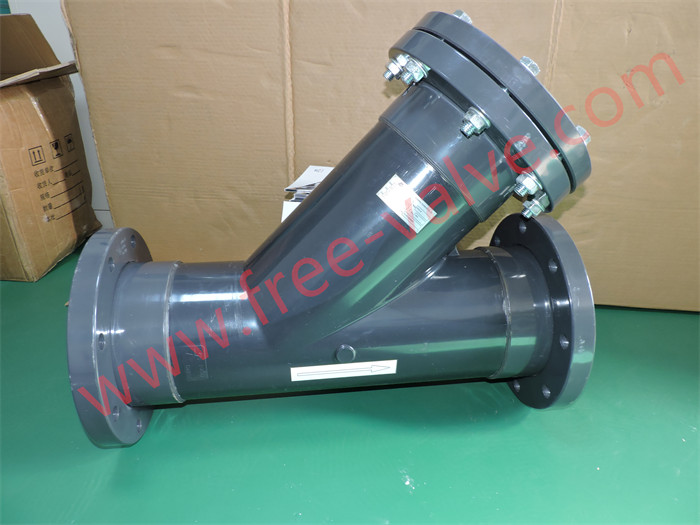

Loose Flange Transparent UPVC Body Y Type Sediment Strainer for Chemical water Treatment
FREE-VALVE Loose Flange Transparent UPVC Body Y Type Sediment Strainer gets its name from its shape, which resembles the letter Y.They are made from a nontoxic, lightweight thermoplastic resistant to ultraviolet (UV) light, acids, alkalis, oils, many corrosive inorganic chemicals.
FREE-VALVE Loose Flange Transparent UPVC Body Y Type Sediment Strainer gets its name from its shape, which resembles the letter Y.They are made from a nontoxic, lightweight thermoplastic resistant to ultraviolet (UV) light, acids, alkalis, oils, many corrosive inorganic chemicals.Y Strainers install inline to protect pumps, control valves, and other process equipment from damage caused by dirt or debris in the process media.
Features
- Vertical or horizontal installation, strong holding capacity, filtering without fouling,very practical,provide you with good work experience, improve work efficiency.
- Available in a wide range of sizes, plastic materials and types we can cater for your every filtration need.
- Easy cleaning without interrupting the process.

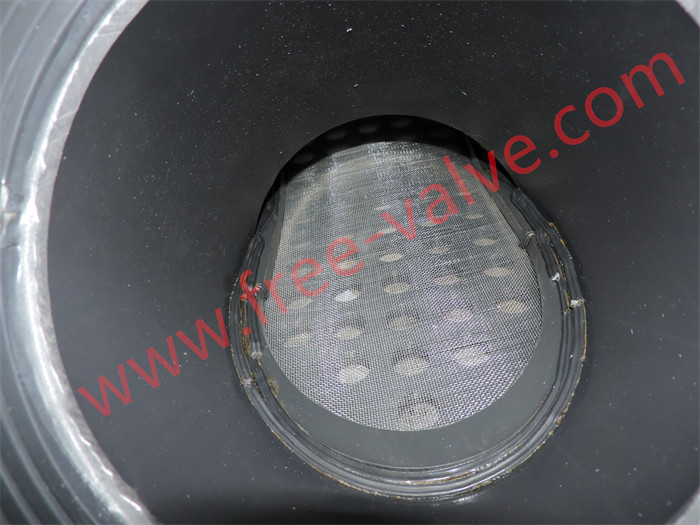

- Various precision of the filter screen are available to meet your process requirements.
- Working temperature:
FRPP -14ºC~ +90ºC,UPVC -10ºC~ +60ºC,PVDF -40ºC~ +150ºC,CPVC -20ºC~ +95ºC
Technical Specification:
- Size Range: DN15~DN300
- Applicable Temperature: 0~120℃
- Connection Type:Flange Type
- Filter screen: PP
- Body material：FRPP,UPVC,PVDF,CPVC
- Test standard：GB/T13927
- Mode:FRYS41-10
APPLICATION TEMPERATURE BOUND LIST
| Material | Medium temperature,°C | Material | Medium temperature,°C |
| CPVC | -20°C～+95°C | UPVC | 0°C～+65°C |
| FRPP | -14°C～+90°C | PPH | -20°C～+110°C |
| PVDF | -40°C～+150°C |
Application:
FREE-VALVE Loose Flange Transparent UPVC Body Y Type Sediment Strainer are a valuable addition to many piping systems as they can be widely used to protect downstream equipment in various applications by removing debris and particles from fluids like water, gas, and oil.Such industries that utilize Y-Strainers are marine, power generation, petroleum, chemical processing and so much more.
